Introduction |
| Brand |
Samsung |
| Model |

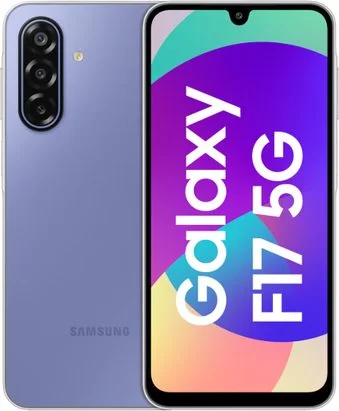

SM-E176B/DS Galaxy F17 5G 2025 Top Edition Global Dual SIM TD-LTE 128GB |
| Released |
2025 Sep |
| Annunciato |
2025 Sep 11 |
| Hardware Designer |
Samsung Electronics |
| Codename |
Samsung A176 |
| OEM ID |
E176BLVDINS |
| General Extras |
Haptic touch feedback |
| Device Category |
Smartphone |
|
Physical Attributes |
| Width |
77.9 mm |
| Height |
164.4 mm |
| Depth |
7.5 mm |
| Dimensioni |
3.07x6.47x0.3 inches |
| Mass |
192 g |
|
Software Environment |
| Piattaforma |
Android |
| Operating System |
Google Android 15 (Vanilla Ice Cream) |
| Software Extras |
Voice Command , Navigation software , Face Recognition |
|
Application processor, Chipset |
| CPU Clock |
2400 MHz |
| CPU |
Samsung Exynos 1330 5G S5E8535, 2023, 64 bit, octa-core, 5 nm, ARM Mali-G68 GPU |
|
Operative Memory |
| RAM Type |
LPDDR4x SDRAM |
| RAM Capacity (converted) |
8 GiB RAM |
|
Non-volatile Memory |
| Non-volatile Memory Interface |
UFS 2.2 |
| Non-volatile Memory Capacity (converted) |
128 GB ROM |
|
Schermo |
| Display Notch |
1-notch |
| Display Diagonal |
169.1 mm |
| Risoluzione |
1080x2340 |
| Horizontal Full Bezel Width |
7.04 mm |
| Display Area Utilization |
85.0% |
| Pixel Density |
387 PPI |
| Display Type |
AM-OLED display |
| Number of Display Scales |
16.8M |
| Display Refresh Rate |
90 Hz |
| Scratch Resistant Screen |
Gorilla Glass Victus |
|
Graphical Subsystem |
| Graphical Controller |
ARM Mali-G68MP2 |
| GPU Clock |
950 MHz |
|
Audio/Video Interfaces |
| A/V Out |
No |
|
Audio Subsystem |
| Microphone(s) |
stereo |
| Loudspeaker(s) |
mono |
| Audio Output |
USB Type-C |
|
Cellular Phone |
| Supported Cellular Bands |
GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS900 (B8) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B17) , LTE800 (B20) , LTE850 (B26) , LTE700 (B28) , TD-LTE2600 (B38) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , LTE1700/2100 (B66) , NR2100 (N1) , NR1800 (N3) , NR2600 (N7) , NR900 (N8) , NR800 (N20) , NR850 (N26) , NR700 (N28) , TD-NR2300 (N40) , TD-NR2500 (N41) , NR1700/2100 (N66) , TD-NR3700 (N77) , TD-NR3500 (N78) bands |
| Supported Cellular Data Links |
GPRS , GPRS MSC33 , EDGE , EDGE MSC33 , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 600/50 , LTE 1000/100 , NR 1500 , NR 2600 data links |
| SIM Card Slot |
Nano-SIM (4FF) |
| Complementary Phone Services |
Voice transmission , Voice speaker , Vibrate , Speakerphone , ANC , HD Voice , VoLTE |
| SAR (head) |
0.640 W/kg |
|
Secondary Cellular Phone |
| Dual Cellular Network Operation |
Dual standby |
| Sec. Supported Cellular Networks |
GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS900 (B8) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B17) , LTE800 (B20) , LTE850 (B26) , LTE700 (B28) , TD-LTE2600 (B38) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , LTE1700/2100 (B66) , NR2100 (N1) , NR1800 (N3) , NR2600 (N7) , NR900 (N8) , NR800 (N20) , NR850 (N26) , NR700 (N28) , TD-NR2300 (N40) , TD-NR2500 (N41) , NR1700/2100 (N66) , TD-NR3700 (N77) , TD-NR3500 (N78) |
| Sec. Supported Cellular Data Links |
GPRS , GPRS MSC33 , EDGE , EDGE MSC33 , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 600/50 , LTE 1000/100 , NR 1500 , NR 2600 |
| Sec. SIM Card Slot |
Nano-SIM (4FF) |
|
Control Peripherals |
| Touchscreen Type |
Capacitive multi-touch screen |
|
Communication Interfaces |
| Expansion Interfaces |
TransFlash , microSD , microSDHC , microSDXC |
| Porta USB |
USB 2.0 |
| USB Services |
USB charging , USB fast charging |
| USB Connector |
USB C reversible |
| Max. Charging Power |
25.0 W charging |
| Bluetooth |
Bluetooth 5.3 |
| Wireless LAN |
802.11a , 802.11b , 802.11g , 802.11n , 802.11ac |
| Wireless Services |
Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling |
| NFC |
NFC A , NFC B |
|
Multimedia Broadcast |
| FM Radio Receiver |
No |
|
Satellite Navigation |
| Complementary Satellite Services |
Simultaneous GPS , A-GPS , Geotagging , QuickGPS , QZSS |
| Supported GLONASS protocol(s) |
L1OF |
| Supported Galileo service(s) |
E1 |
| Supported BeiDou system (BDS) |
B1I BeiDou receiver |
|
Primary Camera System |
| Camera Placement |
Rear |
| Camera Image Sensor |
BSI CMOS |
| Image Sensor Pixel Size |
0.64 micrometer |
| Number of effective pixels |
50.1 MP camera |
| Aperture (W) |
f/1.80 |
| Zoom |
1.0 x optical zoom |
| Focus |
PD AF |
| Video Recording |
1920x1080 pixel |
| Flash |
single LED |
| Camera Extra Functions |
EIS (video) , OIS , Pixel unification , HDR photo , Red-eye reduction , Slow motion video , Burst mode , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch |
| Aux. Camera Image Sensor |
BSI CMOS |
| Aux. Cam. Image Sensor Pixel Size |
1.12 micrometer |
| Aux. Camera Number of Pixels |
4.9 MP aux. cam |
| Aux. Camera Aperture (W) |
f/2.20 |
| Aux. Camera Extra Functions |
HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection |
| Aux. 2 Camera Image Sensor |
CMOS |
| Aux. 2 Camera Number of Pixels |
1.9 MP aux. 2 cam |
| Aux. 2 Camera Aperture (W) |
f/2.40 |
| Aux. 3 Camera Image Sensor |
No |
| Aux. 4 Camera Image Sensor |
No |
|
Secondary Camera System |
| Secondary Camera Placement |
Front |
| Secondary Camera Sensor |
BSI CMOS |
| Secondary Camera Number of pixels |
13.0 MP sec. cam |
| Secondary Aperture (W) |
f/2.00 |
| Secondary Video Recording |
1920x1080 pixel |
| Secondary Camera Extra Functions |
HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch |
| Sec. Aux. Cam. Image Sensor |
No |
|
Built-in Sensors |
| Built-in compass |
Yes |
| Built-in accelerometer |
3D accelerometer |
| Additional sensors |
FP sensor , L sensor , P sensor |
|
Ingress Protection |
| Protection from solid materials |
5 Protected against dust with limited ingress |
| Protection from liquids |
4 Protection against water sprayed from all directions, limited ingress |
|
Power Supply |
| Batteria |
Li-ion polymer (LiPo) |
| Nominal Battery Voltage |
3.87 Volts |
| Nominal Battery Capacity |
5000 mAh battery |
| Nominal Battery Energy |
19.35 Wh |
|
Geographical Attributes |
| Market Countries |
India |
| Market Regions |
Asia |
| Prezzo |
17499 |
|
Datasheet Attributes |
| Data Integrity |
Final |
| Added |
2026-02-06 23:44 |
